Technical data

Imaging modes

​Rectal linear2-9 MHZ

​Rectal convex 2-5 MHZ

Backfat 2-5 MHz
Convex 1-6 MHz
Convex 2-5 MHz
Convex 2-8 MHz
Hockey stick 6-14 MHz
Abdominal linear 4-12 MHz
Abdominal linear 6-14 MHz
Microconvex 4-9 MHz
OPU 4-9 MHz
Rectal linear 4-9 MHz
Rectal convex 2-8 MHz
Rectal microconvex (P-probe) 4-9 MHz

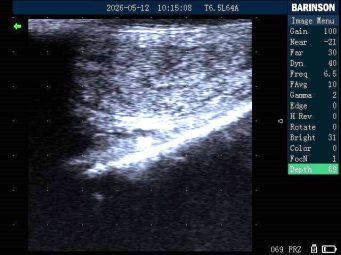

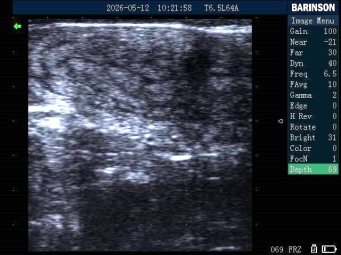

B Mode
B+B Mode
4B Mode
M Mode
B+M Mode​​​​​​​

probes

< 20 s

Dimensions

Battery charging time

2.4 kg

Stand
OLED goggles
Extension and T-holder for rectal linear or rectal convex probe

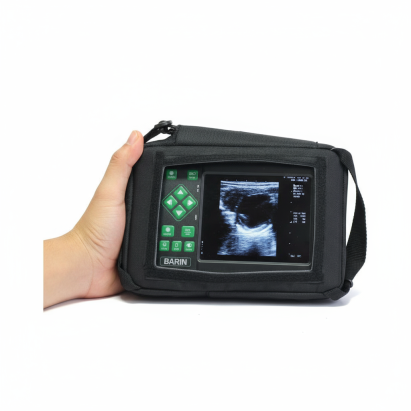

Shade cover

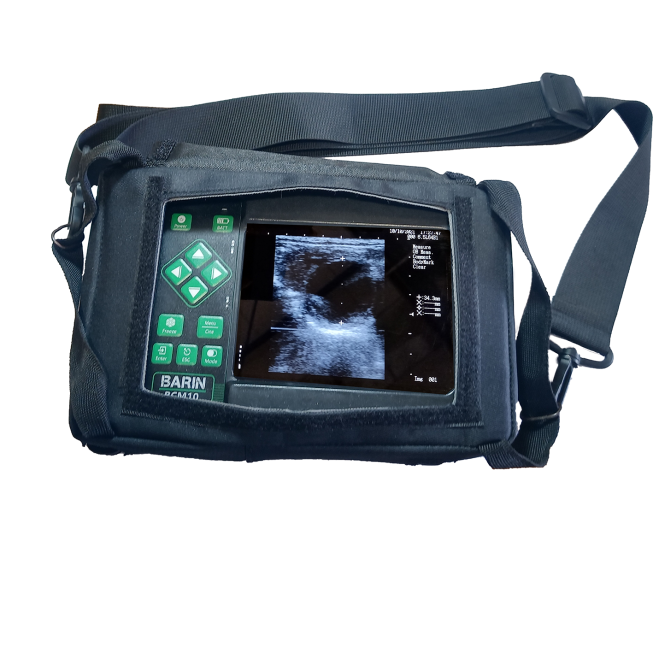

Bag with shade cover
Transport bag
Suspenders
Carry straps
Waist belt
Standoff
Wi-Fi Antenna

Width 22 cm, Height 16.5 cm, Depth 6.7 cm

To external flash drive via USB

Accessories

Dynamic Focus

Freeze
Zoom 60 – 300%
Full screen
Invert left-right and up-down
Saving images
Saving cine loops

Dynamic range
Frame averaging
Vi-Probe
D-Curve
LuciD
Compound Imaging (CI)
Line density
Field of view (FOV)
TGC

Basic: Distance, Follicle, Area, Ellipse Area, Grid, Stenosis, Volume
Obstetric package: aging tables for different species
Cardiology package: Heart Rate (HR), LA/Ao, Left Ventricle function (LV), Left Ventricle Volume: V Simpson’s LVAM – LVAP method, V Simpson’s Single plane method, V Bullet method
Doppler: Resistance Index (RI), Pulsation Index (PI), Peak Systolic Velocity (PSV), End-Diastolic Velocity (EDV), Average Velocity (AVG)
Doppler Point
Acceleration Time (AT)
Heart Rate (HR)
Blood Flow Area %

200 images
200 cine loops

Battery operating time

Workflow tools

Weight (with probe and battery)

Booting time

Up to 4 h

Up to 7 h

Control panel

Frequncy

​range:2-9 MHZ
(depends on probe)

No

Image managment

Image adjustment

Measurements

Display

12″ LCD LED
500 cd/m2
1024 x 768 px

Memory

Battery check when OFF
Hidden active fields
Easy distance measurement
Precise measurements with magnifying glass

IP65

Ingress Protection (IP) rating

Power supply

External battery

WiFi connection to mobile devices

No

Multimedia ports

6-pin connector for data transfer
12-pin connector for goggles

Postprocessing

Yes

Control panel

Membrane keyboard

Exported file format

AVI, BMP

Exporting data method

To external flash drive via USB connector
To mobile App by WiFi (images only)

Control panel
